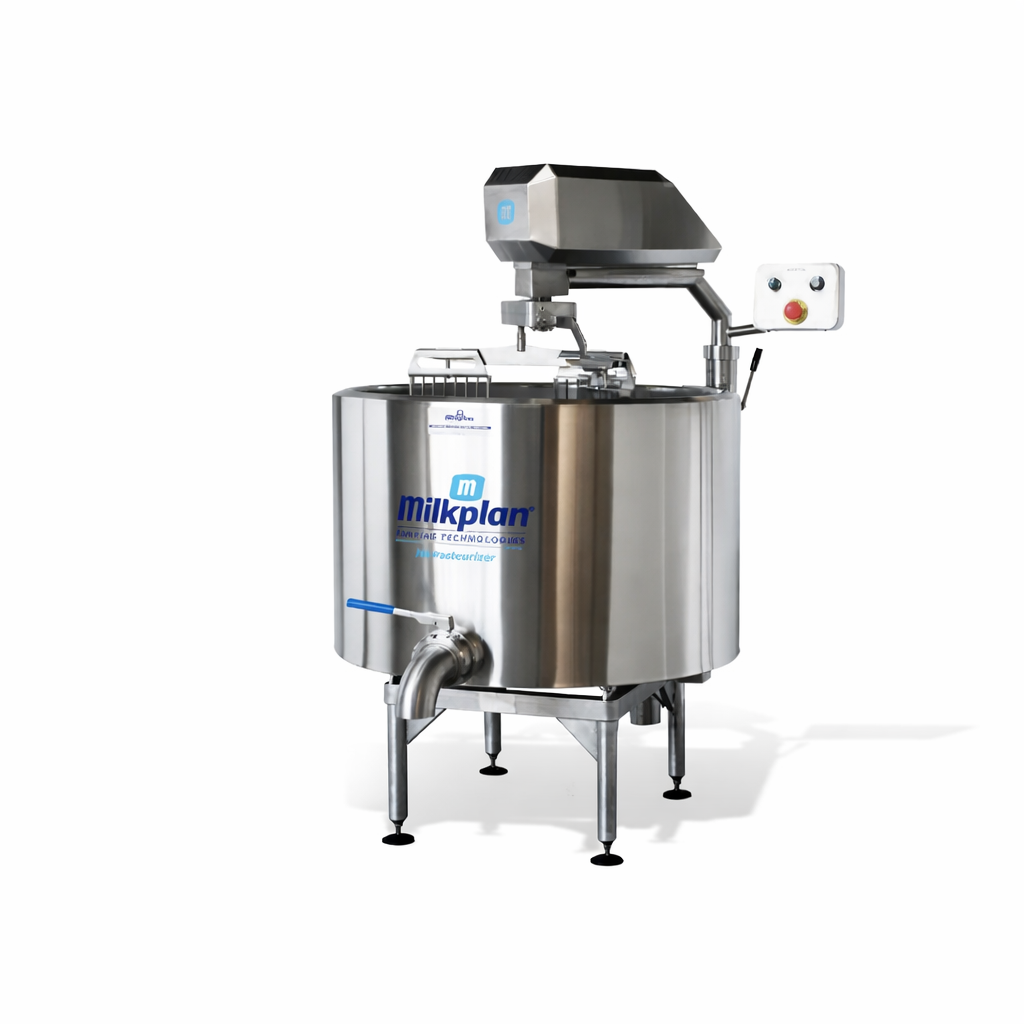

Milkplan Cheese Pasteuriser 200–1000L
Designed to give cheesemakers complete control over every stage of production, the Milkplan Cheese Pasteuriser 200–1000L combines precision engineering, gentle curd handling, and dependable temperature accuracy. Built from AISI 304 food-grade stainless steel and insulated with a durable double-wall polyurethane system, the Milkplan Cheese Pasteuriser 200–1000L supports efficient pasteurisation while protecting delicate curd structure.
Purpose-Built for Cheesemaking
Every Milkplan Cheese Pasteuriser 200–1000L includes specialist features developed specifically to support curd formation, cutting, draining, and handling.
8% Tilting Mechanism
Each unit is fitted with an 8% tilting system, available in manual or air-piston assisted versions. This allows smooth, controlled draining of curds, helping preserve curd structure while improving yield and operator safety.
Optimised Temperature Control
An NTC IP68 AISI316 immersion sensor is positioned in a curved, recessed location inside the tank. This ensures highly accurate temperature readings while remaining clear of cutting blades, preventing disturbance to the curd during processing.

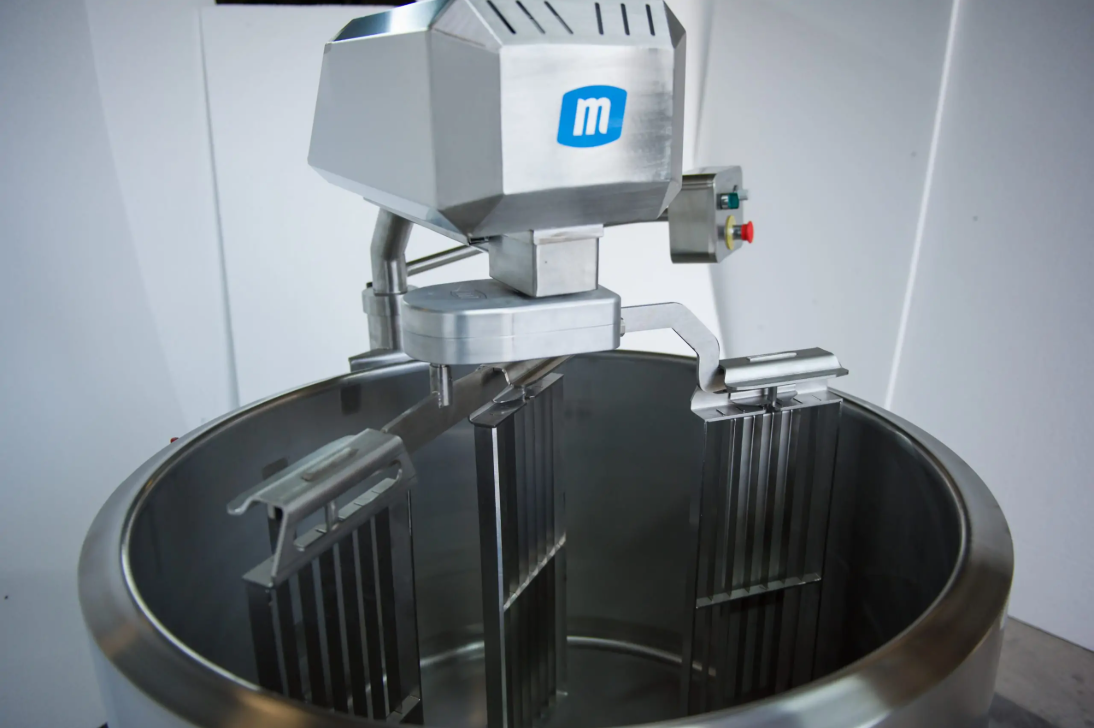

Planetary Stirring for Ideal Curd Cutting
A heavy-duty planetary stirring system rotates on multiple axes to deliver even, consistent curd cutting—essential for achieving uniform cheese texture and precise moisture control.
Cheese-Specific Stirring & Cutting System
Powerful Adjustable Stirring Motor
-
High-torque motor protected by a stainless-steel cover
-
Inverter-controlled for fine speed adjustment
-
Mounted on a detachable, rotating stainless-steel arm for easy access
Stainless-Steel Control Interface
-
Stainless-steel speed control knob
-
Selectable stirring direction (clockwise / counter-clockwise)
-
Indicator lights for safe operation
-
Emergency stop switch for instant shutdown
Specialised Stirring & Cutting Tools
-
Detachable stainless-steel milk frother stirrer
-
Durable stainless-steel cutters for clean, uniform curd cutting
Operator-Friendly Design
Easy Access & Cleaning
-
Fully removable split-type stainless-steel tank lid
-
Smooth internal surfaces for fast, hygienic wash-down
Fast & Controlled Emptying
-

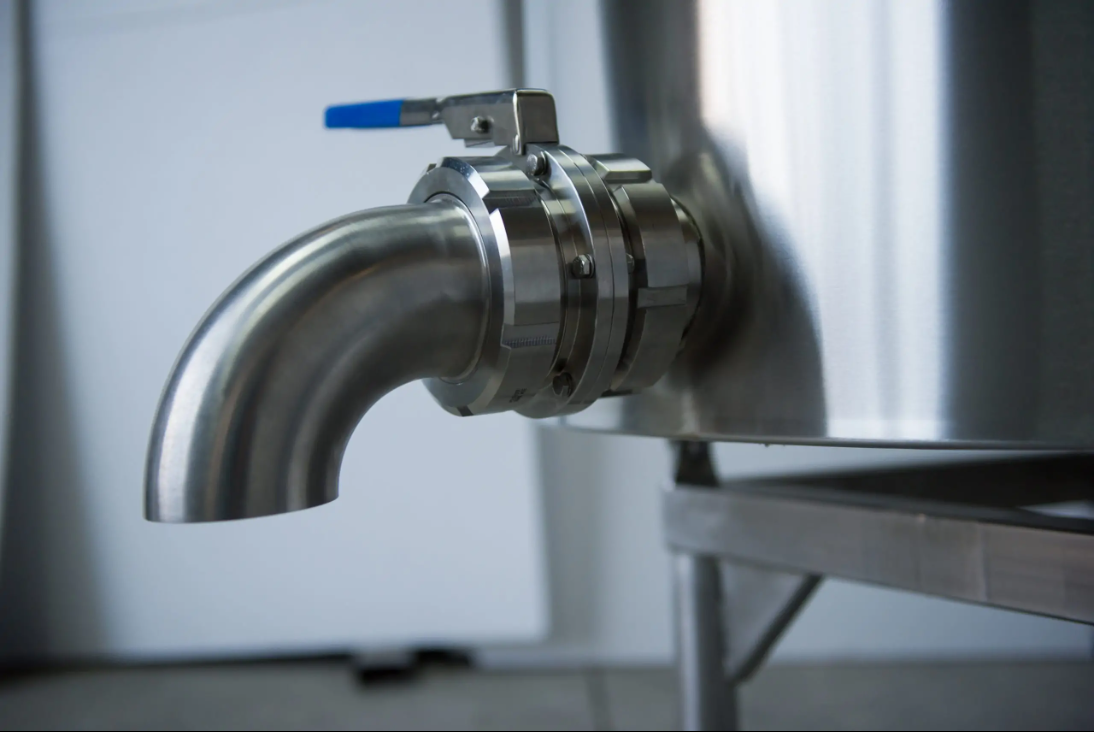

DN80 outlet valve for efficient whey and liquid drainage
-
Removable stainless-steel curd filter to retain curds during emptying
Built for Skilled Cheesemakers & Growing Dairies
Available in 200L to 1000L capacities, the Milkplan Cheese Pasteuriser 200–1000L is ideal for artisan cheesemakers, farm shops, dairy diversification projects, and expanding cheese plants that demand reliable, repeatable performance.
| TYPE | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 200 | 1680 | 475 | 1130 | 620 | 650 | 1140 | 1195 | 920 |
| 300 | 1680 | 421 | 1130 | 598 | 610 | 1230 | 1255 | 1020 |
| 500 | 1800 | 385 | 1240 | 530 | 555 | 1385 | 1325 | 1115 |
| 650 | 1965 | 390 | 1400 | 540 | 555 | 1420 | 1325 | 1115 |
| 800 | 1875 | 375 | 1315 | 520 | 545 | 1570 | 1490 | 1320 |
| 1000 | 2180 | 575 | 1525 | 700 | 785 | 1700 | * | 1520 |

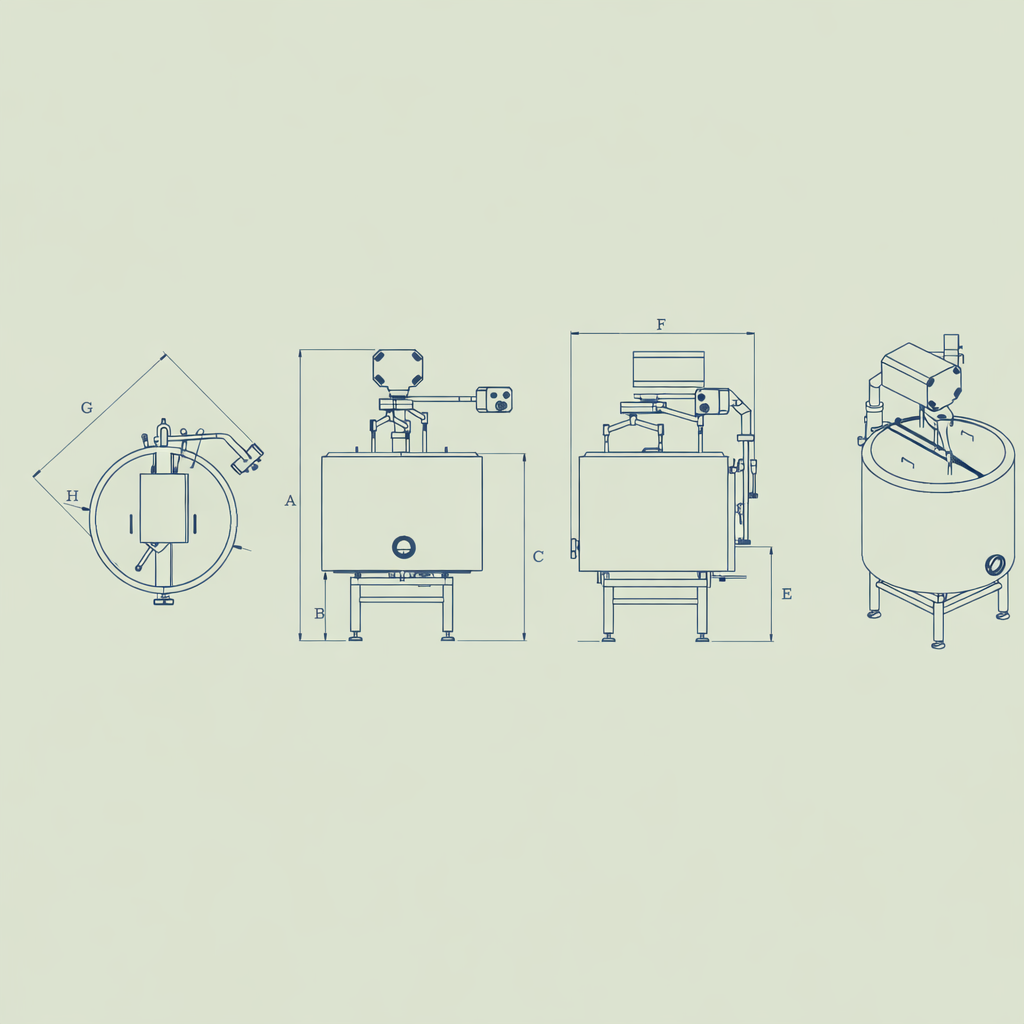

Use the last image for help with these dimensions.
Pricing, dimensions, upgrades, and custom options are available on request.
Please contact our team for guidance in selecting the right size and specification for your cheesemaking operation.
