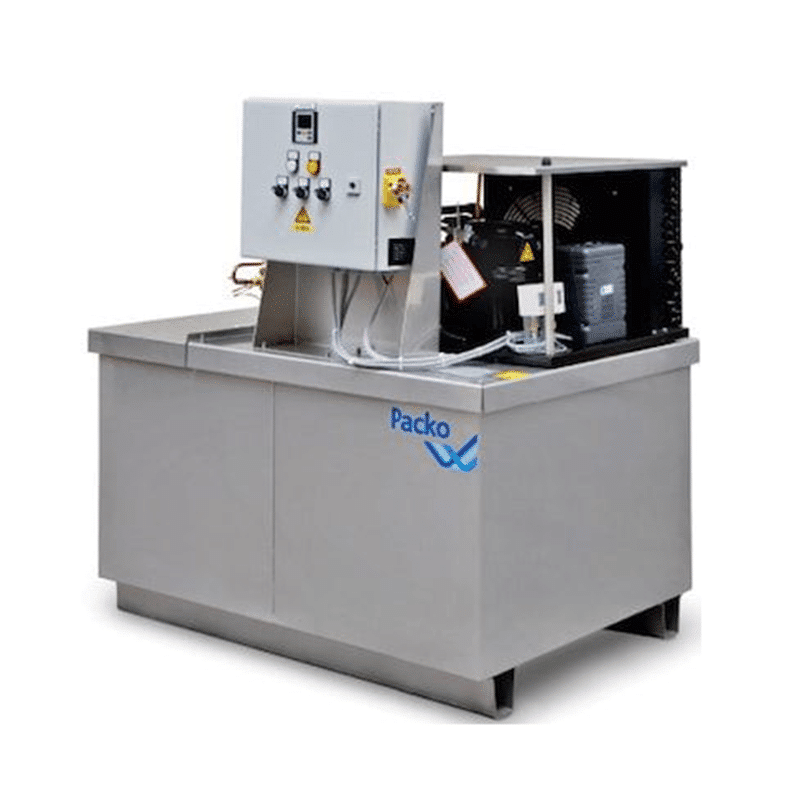

Fullwood packo ice builder complete with compressors pib 8-13

Description

Fullwood packo pib 8-13 ice builder complete with compressors attached 2 models in this range the pib 8 and the pib 13

Construction:

construction completely made in stainless steel 18/10 ? aisi 304 insulated with polyurethane foam for an excellent insulation and extra strength of the tank the well dimensioned evaporator enables the storage of a large ice reserve, this guarantees a maximum cold transfer. the evaporator is made of seamless copper tubes and mounted in a stainless steel frame for a long lifetime.

Operation:

accumulation of energy at cheaper electricity rates via e.g. night rate or alternative energy such as solar panels an ice thickness probe activates the eco-cool cooling unit until an equal layer of ice on all evaporator tubes has been built the water in the ice builder is cooled to 0.5c.  a pump sends the ice water to the milk cooling tank or a pre-cooler to cool down the milk the ice is melted down by the warm water returning from the consumer

Important options:

anti-frost protection

other type of ice water pump

time clock for use of night rate – only if not in combination with a milk cooling tank with i control

Model energy k/cal ice
kg water
kg weight
Pib8
8.8kw/h
7570
95
396
320kg
Pib13
13.4kw/h
11488
144
396
370kg
